New Circuit Board Main Scooter Motherboard Replacement Part for Balance Scooter

FOB Reference Price:Get Latest Price
  • 10 - 49 Pieces
    $15.23
  • >=50 Pieces
    $14.58
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Model Number:
TJ00330
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Port
Shenzhen
Lead Time :
We will ship them out within one week since you paid.






Description:

this set has high quality and cheaper price,it included Motherboard,Gyro board,L /R LED Light Indicators,LED Light Circle,Switch and Charging Socket Cable,it not like other seller only sales for one part of it and expensive.This set will be a good choice for you!



Specification:

-Input Voltage:100-240VAC 50/60Hz
-Charger Voltage:42VAC
-Charger Current: 2A
-Max.speed: 12km / h (more than 10km / h began to alarm)
-Max.travel: 20km(depending on the terrain, temperature, driving style and load, the -distance will be different)
-Max.weight:120kg
-Max.climbing angle: 15 °
-Tilt protection: more than 80 ° motor will stop running
-Low battery protection
-Safety Tips: low battery tips, speed tips


Feature:
-This board does not have the remote receiver module on it.

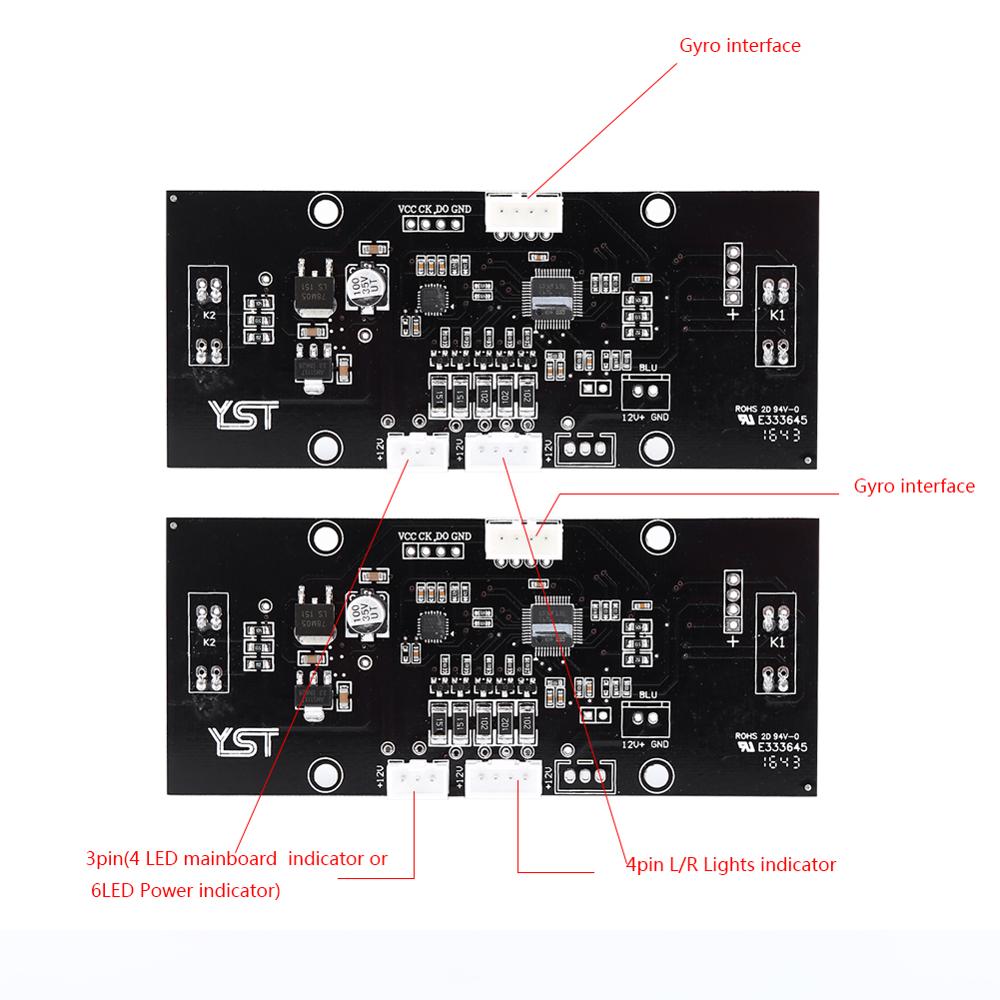

-The gyro have 3 sockets:
one side single 4 pins socket is for Gyro interface;other One side 3 pins socket is for (4 LED mainboard  indicator or 6LED Power indicator),and 4 pins socket is for power indicator.


Here is the fault LED indicator reference table(The fault led indicator on main control board):
Scooter fault LED Indicator Reference
Flash 1 times: short line quiescent current fault
Flash 2 times: long line quiescent current fault
Flash 3 times: motor phase failure
Flash 4 times: short line motor Hall fault
Flash 5 times: long line motor Hall fault
Flash 6 times: battery failure
Flash 7 times: long line gyroscope connection failure
Flash 8 times: short line gyroscope connection failure

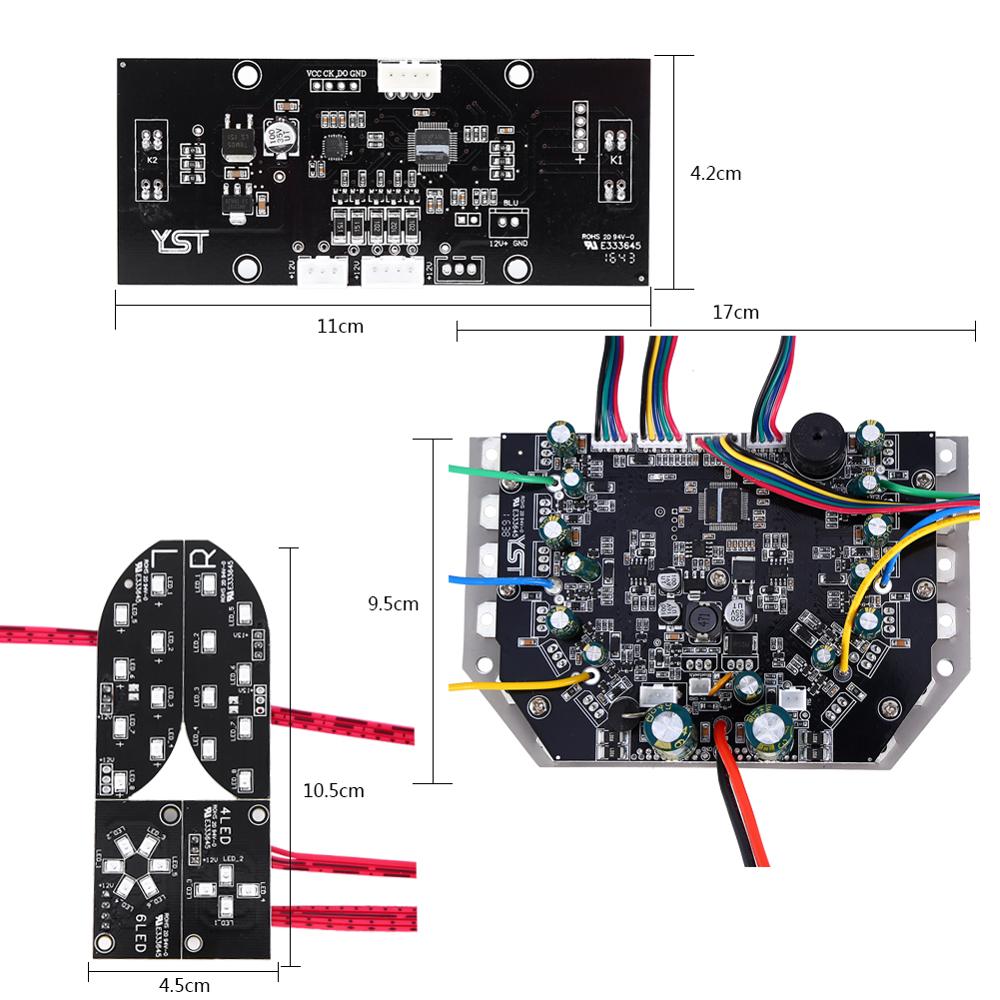

Package included:
1 x Motherboard
2 x Gyro board
1 x L LED Light Indicators
1 x R LED Light Indicators
2 x LED Light Circle(4 LED and 6 LED)

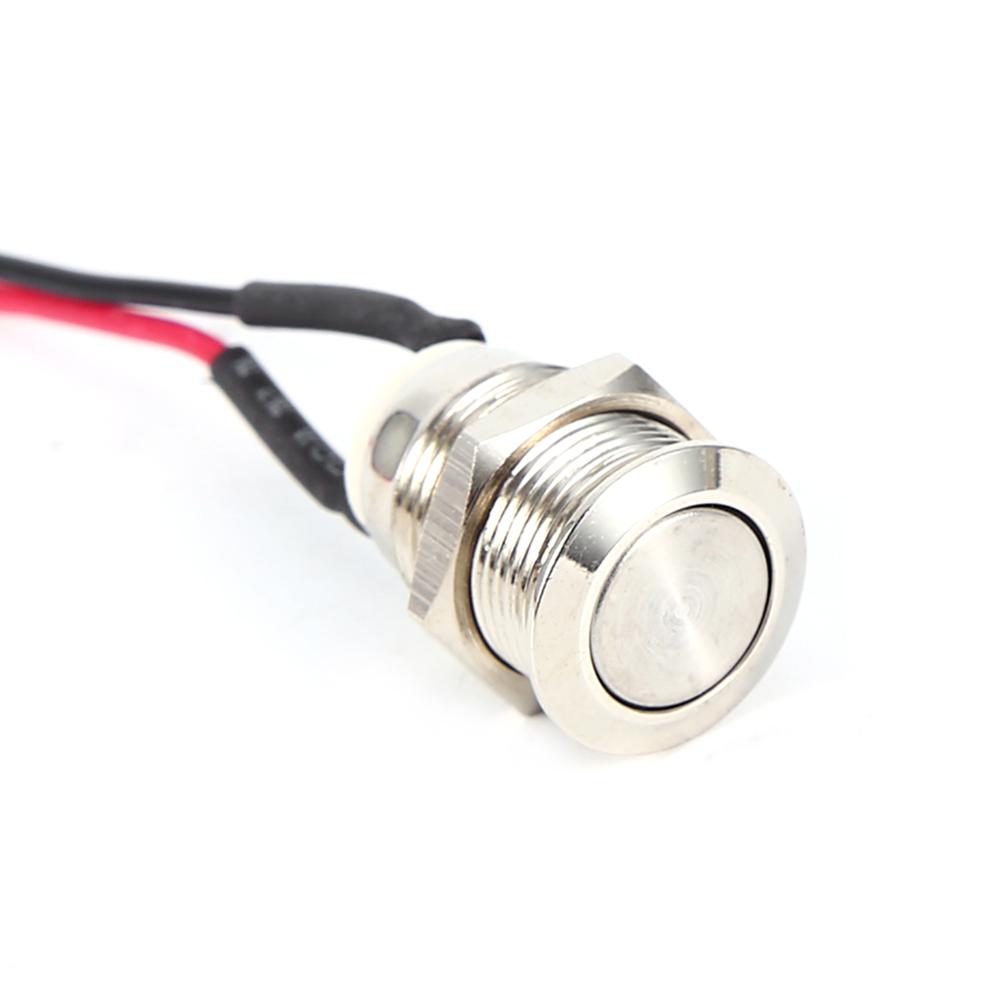

1 x LED Supply Switch

1 x Charging Socket Cable



Note:
Item color displayed in photos may be showing slightly different on your computer monitor since
monitors are not calibrated same
